Raspberry Pi Mono Sensor Global Shutter Camera module gs camera module Support External Trigger60fps 1456x1088 resolution for raspberry pi
The imx296 is a mono version gs camera module compatible with Raspberry Pi official gs camera module;
Compatible with raspberry pi os with built in driver, support libcamera directly;

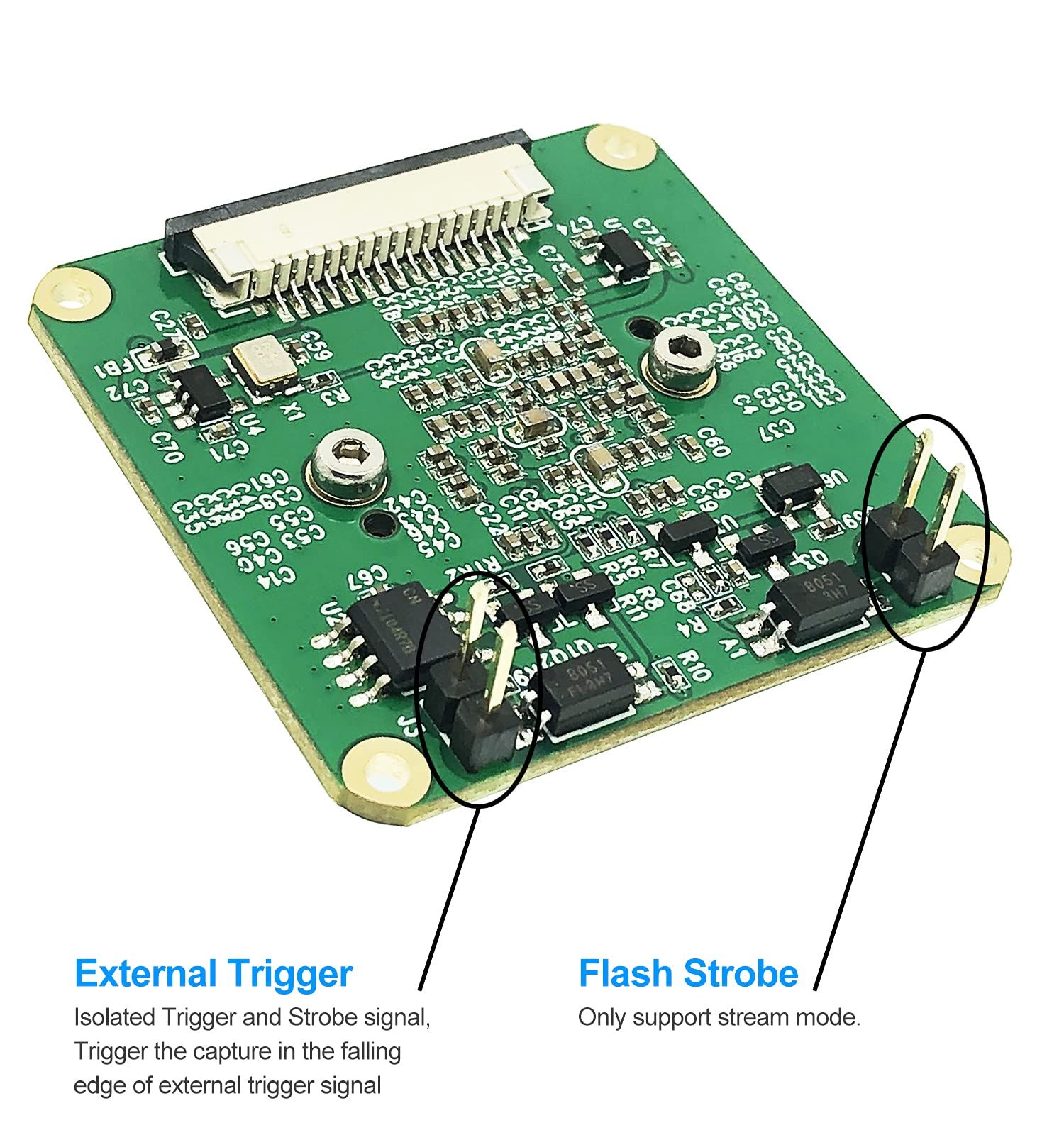

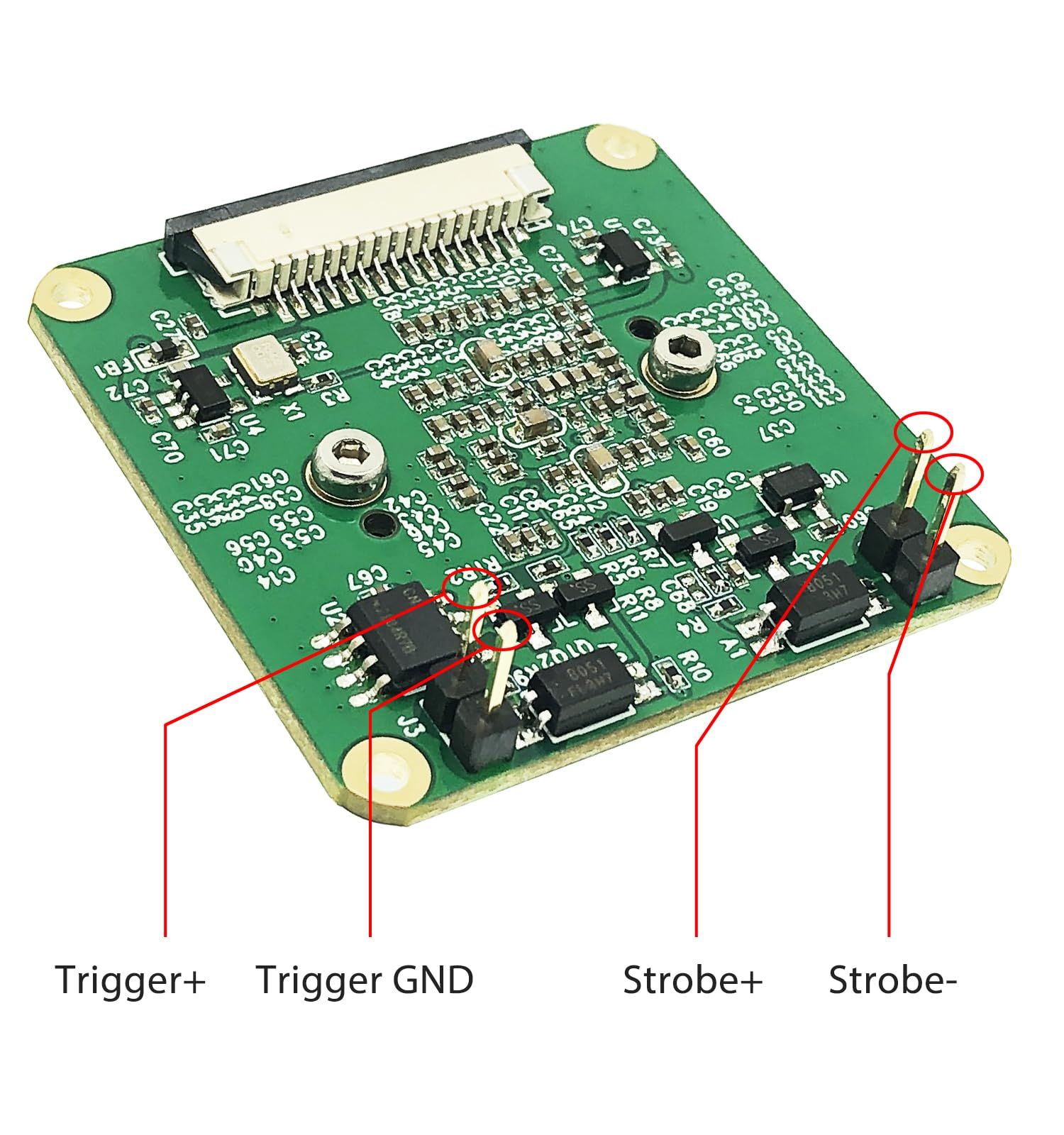

Support external fast trigger, Isolated Trigger and Strobe signal, Trigger the capture in the falling edge of external trigger signal.
Come with a Fish-Eye Wide Angle Lens of FOV 160 angle.
The mono gs camera module compatible with Raspberry Pi 4/Pi 3B+/Pi 3.

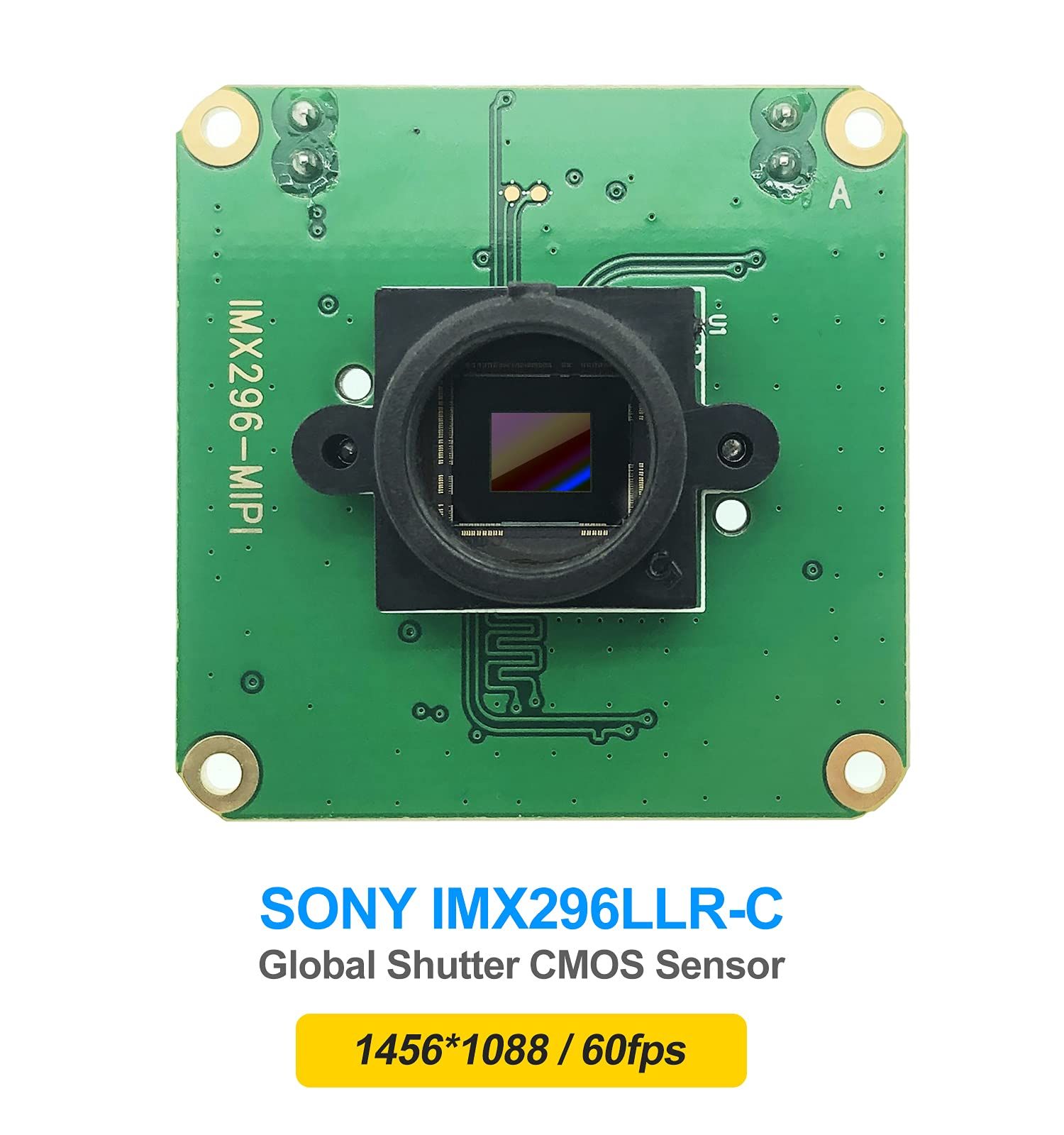

The mono gs camera module sensor IMX296LLR-C is a diagonal 6.3mm (Type 1 / 2.9) CMOS active pixel type solid-state image sensor with a square pixel array and 1.58 M effective pixels. This chip features a global shutter with variable charge-integration time.
This chip operates with analog 3.3V, digital 1.2V, and interface 1.8V triple power supply and has:
- low power consumption.
- High sensitivity, low dark current and low PLS characteristics are achieved. (Applications: Sensing)
Features:

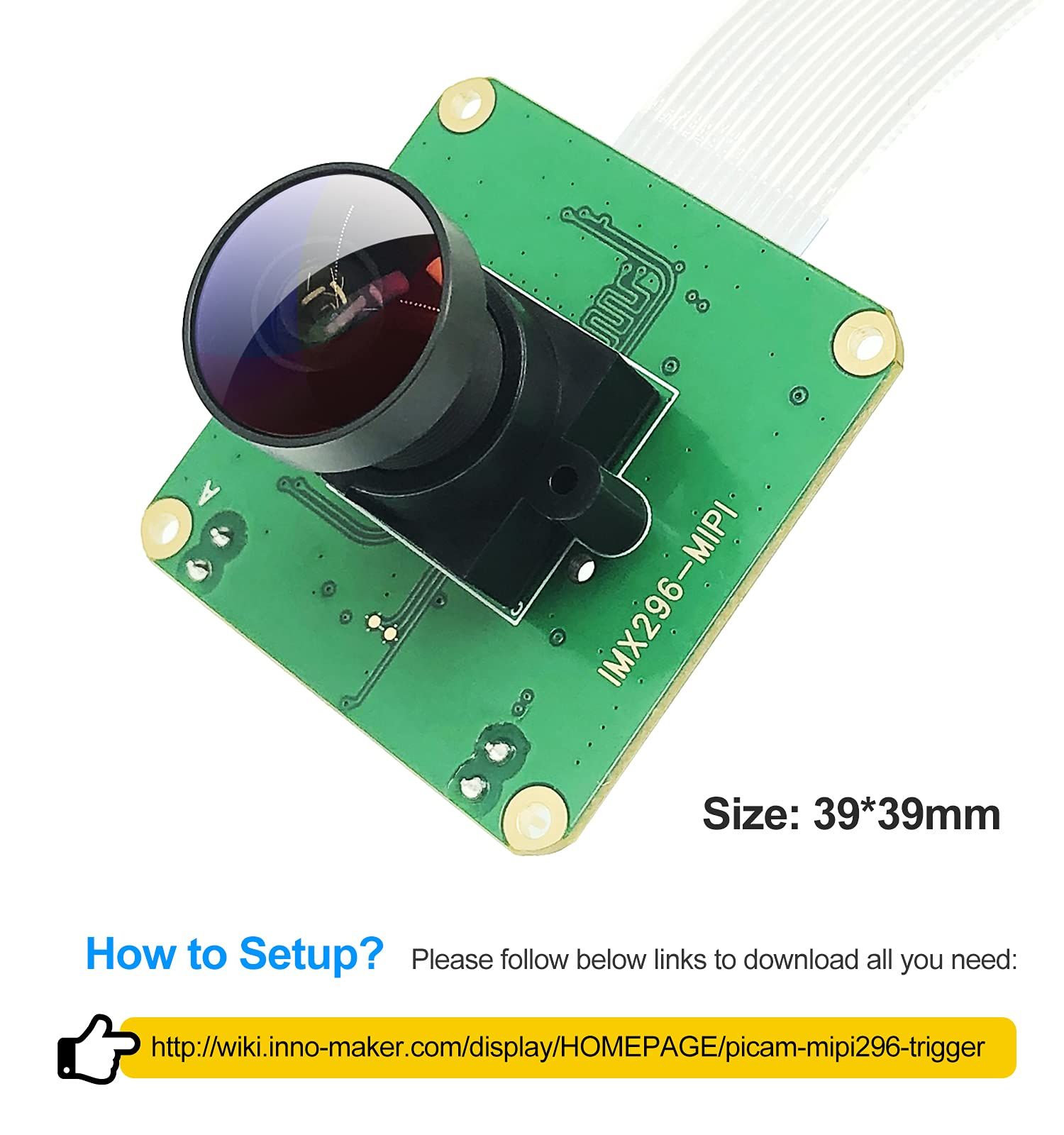

- Size: 39*39mm
- Interface: RPI Camera 15 PIN FPC
- Output format: Y10
- Output resolution:1456*1088
- Global shutter with variable charge-integration time
Quick Start:
step1, Modify config.txt,add dtoverlay=imx296 to the last line;
step2, sudo nano /boot/cmdline.txt,add cma=128M to the last line;
step3, libcamera-hello -t 0
